Can My Garage Trusses Support a 2-Post Lift?

Can your garage trusses support a 2-post lift? They don’t have to — a 2-post lift sends the entire load down its two columns into the concrete slab, not up into the roof. The overhead beam only ties the columns together; it never hangs from your trusses.

This is one of the most common — and most misunderstood — questions from first-time lift buyers. People see the big steel beam across the top of a two-post lift and assume it hangs from the ceiling, so they worry their garage trusses can’t take the weight. The good news is that the premise is wrong: your trusses were never going to hold the lift. Understanding where the load actually goes settles the worry — and tells you the one situation where trusses do matter.

Can your garage trusses support a 2-post lift?

They don’t have to, because a 2-post lift doesn’t put its load into them. The vehicle’s weight is carried by the two steel columns, and it travels straight down into the concrete floor — which is why the whole game is your slab thickness and strength, not your roof. The columns are the load path; the trusses are bystanders.

So the honest answer is: your trusses don’t need to support anything. What they can affect is clearance — whether an overhead beam fits under them — and that’s a fit question, not a strength question. We’ll cover both.

Where does a 2-post lift’s weight actually go?

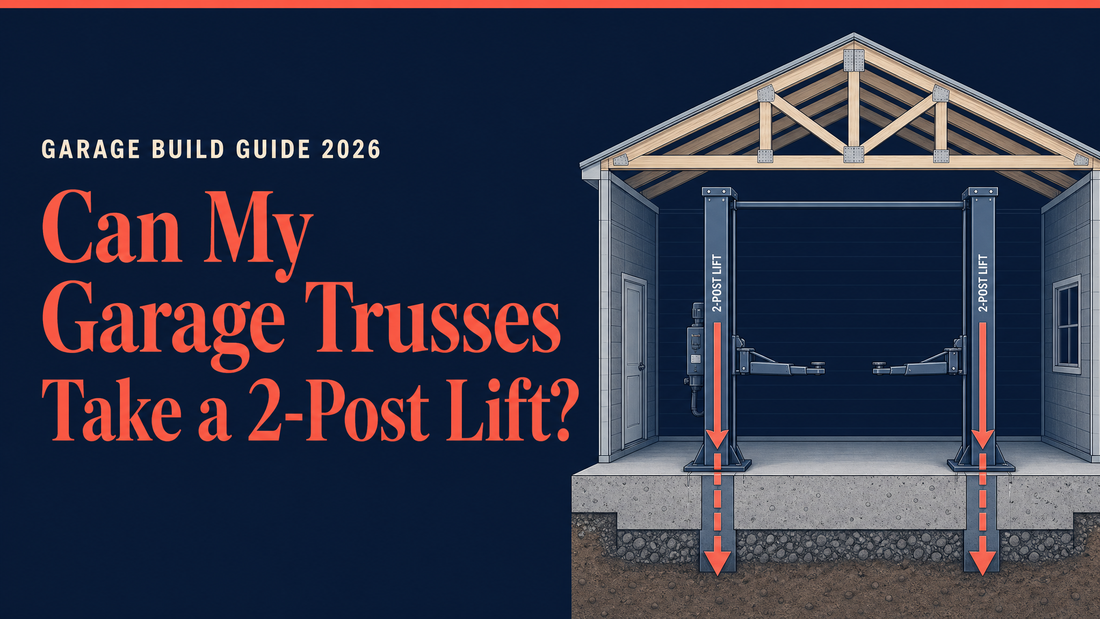

Follow the load. A car rests on the lift arms, the arms transfer that weight to the two carriages, the carriages ride the columns, and the columns push the load down through their base plates into the slab. Nothing about that path touches the roof. As BendPak explains, the “transferring assembly” that links the two columns is either an overhead assembly (between the tops of the columns) or a floorplate assembly (between the bottoms) — and in both cases it links the columns to each other, not to the building.

That’s why the overhead beam is so often misread. It carries the equalizer cables, hydraulic hoses, and the automatic shut-off that stops the lift if a vehicle hits it — not the car’s weight. Bolting it to your trusses for “extra support” would do nothing good and could damage the roof.

Overhead or baseplate — which one do trusses affect?

This is where your roof actually enters the decision, and it’s about height, not load. An overhead (clear-floor) lift puts the beam up top, which keeps the floor between the posts open but needs more ceiling clearance. A baseplate (floorplate) lift moves the connection to the floor, removing the overhead beam entirely so it fits under a lower ceiling — at the cost of a small hose track across the floor.

Source: BendPak — Overhead vs Floorplate Two-Post Lifts. If your ceiling or trusses are tight, a baseplate model usually solves it without touching the roof.

Should you ever attach a lift to the roof or trusses?

No. Residential roof trusses are engineered for a specific set of roof loads — roofing material, snow, wind, and limited attic storage — not the concentrated point load of a vehicle lift. Hanging any part of a lift from them defeats how they were designed to work. And it isn’t even structurally sound intuition: as practitioners note, an I-beam isn’t necessarily stronger under a lateral load than a wood truss, so “just bolt it to something up there” is exactly the wrong instinct. A 2-post lift is a floor-supported machine; keep it that way.

Can garage roof trusses be modified to gain height for a lift?

Sometimes people don’t want the trusses to carry the lift at all — they want to remove or raise the bottom chords to gain the ceiling height an overhead lift (or a tall vehicle) needs. That is real structural work, and it has one hard rule.

Done properly, gaining height means an engineer designs a steel beam and posts to carry the roof load around the opening you’re creating. For a typical two-car span, that’s often a W8x18 or larger beam sized to the span and deflection limits, with new posts down to the sidewalls or footings. It works — it just has to be engineered, permitted, and built to the drawing, never improvised.

What are your options if the roof is in the way?

Before you cut a single truss, check whether a different lift solves it for a fraction of the cost:

1. Switch to a baseplate / low-ceiling 2-post lift — no overhead beam to clear the trusses at all.
2. Choose a four-post lift or a mid-rise scissor lift — both sit lower and none of them load the roof.
3. If you truly need the height, get a structural engineer to design a truss modification and a proper beam-and-post load path.

Nine times out of ten, the answer is a lift that fits — not a modified roof. Compare the full car lift range by ceiling height and lift type before you reach for a saw.

When should you call a structural engineer?

Call one the moment the roof structure is in play: you want to remove or alter truss members, gain clearance for an overhead beam, or install in a garage with a room or storage above. An engineer’s letter or design is usually a few hundred dollars — trivial next to the cost of a compromised roof, and often required for the permit anyway. For the lift itself sitting on an adequate slab, no engineer and no truss work is needed at all.

Frequently asked questions

Primary sources: BendPak — Overhead vs Floorplate Two-Post Lifts · Fine Homebuilding — How Roof Trusses Work · Home Construction Improvement — Can Trusses Be Modified? · JustAnswer — Modifying Garage Trusses for an Auto Lift.
