How Thick Does Concrete Need to Be for a 2 Post Lift?

How thick does concrete need to be for a 2 post lift? For a standard two-post lift you need at least 4 inches of steel-reinforced concrete rated to a minimum of 3,000 PSI and cured for at least 28 days — but 6 inches is what most installers actually recommend, and heavy-duty lifts need 8.

It sounds like a simple question with a one-number answer. It isn't — and getting it wrong is how a two-post lift ends up leaning, cracking the floor, or dropping a car. A two-post lift channels the entire weight of your vehicle down two narrow columns and into a handful of anchor bolts. Those bolts only hold if the concrete underneath is thick enough, strong enough, and cured enough to grip them. This guide gives you the exact minimums, the numbers professionals actually use, and a five-minute test to check the slab you already have.

How thick does concrete need to be for a 2 post lift?

For a standard two-post lift, the concrete needs to be at least 4 inches thick, made of 3,000 PSI (or stronger) steel-reinforced concrete, and cured for a minimum of 28 days. That 4-inch figure is the accepted floor across the industry: BendPak lists 4¼ inches as the minimum for its two-post lifts on a pre-existing floor, and specialist retailers echo the same 4-inch, 3,000-PSI baseline.

The catch is that 'minimum' and 'recommended' are two different numbers. Four inches will carry a light-duty lift on a good slab, but it leaves almost no margin for error. As SVI International puts it, 'a minimum of four inches of reinforced concrete is the standard, however, ideally, you should have at least six inches, and as much as twelve.' Six inches is the number most installers reach for, because it keeps the anchors well within solid concrete instead of near the bottom of a thin slab.

Sources: BendPak concrete floor requirements, Redline Stands, SVI International. Always follow the exact figures in your own lift's installation manual — they override any general guide.

Why does concrete thickness matter so much for a 2-post lift?

Because of where the load goes. Unlike a four-post lift, which spreads a vehicle's weight across four runways and wide base plates, a two-post lift puts roughly half the vehicle's weight through each column and down into just a few anchor bolts per base plate. Those bolts don't hold by friction — they hold by gripping a cone of concrete around each bolt. If the slab is too thin, that cone isn't deep enough to develop full strength, and the anchors can pull straight out under load.

This is the single most common serious failure with home lift installs, and it's why the 4-inch line matters so much. As CarLiftLab bluntly summarizes it, 'that 4-inch mark is the difference between a safe lift install and a cracked slab.' Below 4 inches, a standard two-post install is simply not recommended.

What concrete strength (PSI) and cure time do you actually need?

Thickness is only half the spec — strength and age matter just as much. The minimum is 3,000 PSI compressive strength, which happens to be what most residential garage slabs are poured at anyway. If you're pouring fresh concrete or a new footing pad, step up to 4,000 PSI; BendPak calls for 4,000 PSI on any new slab it will sit on.

Cure time is the number people forget. Concrete keeps gaining strength for weeks after it's poured, and it only reaches its rated strength at around 28 days. Anchoring a lift into 'green' concrete that's only a few days old is a recipe for pullout, so every serious source — from BendPak to Redline Stands — specifies a 28-day minimum cure before installation. Two more rules from the manufacturers: don't install on hand-mixed concrete (strength is inconsistent), and don't anchor into cracked, spalled, or defective concrete without repairing the slab first.

Does the right thickness change with your lift's capacity?

Yes. A light two-post lift for a sedan doesn't push the floor as hard as a 15,000 lb lift built for a dually. The heavier the rated capacity, the more concrete you need under the anchors. Here's the common tiering that lift retailers use, drawn from Redline Stands' breakdown:

A good rule of thumb: pick your lift capacity first (about 20% above your heaviest vehicle's weight), then match the slab to it — not the other way around. Most home buyers land on a 9,000–10,000 lb two-post lift — for example a 4-ton two-post hydraulic lift or a double-column gantry lift — which sit comfortably in the 4-to-6-inch tier. If you're weighing your options, browse the full garage car lift range to compare capacity, ceiling height, and lift type together.

How do you check the thickness of your existing garage slab?

This is the step almost everyone skips, and it's the most important one. You cannot assume your slab is thick enough just because a car has parked on it for years — parking spreads weight over four tires, while a lift concentrates it into a few bolts. Builders also pour to a target, not a guarantee: many U.S. garage slabs come in at just 3.5 to 4 inches, right on the edge of the minimum.

The good news is you can check it yourself in about five minutes for a few dollars. The DIY drill test:

1. Buy a masonry drill bit at least 6 inches long (a hammer drill helps).
2. Pick a discreet spot roughly where a lift post would sit — away from edges and joints.
3. Wrap a piece of tape around the bit at the 4¼-inch mark so you can see the depth.
4. Drill straight down. Watch the dust: it should stay grey concrete the whole way.
5. If you hit dirt, gravel, or a sudden void before the tape reaches the floor, your slab is too thin.

For a precise number, or if you're installing a heavier lift, have a concrete cutter pull a small core sample — it shows exact thickness and lets a lab confirm the PSI. Either way, patch the test hole afterward. If your slab passes, you're clear to plan the install. If it doesn't, keep reading.

What if your slab is too thin, cracked, or post-tension?

A thin or damaged slab isn't the end of the road — it just changes your plan. You have three realistic options.

1. Cut and pour footing pads

The standard fix is to saw-cut the concrete at each post location and pour a deeper, engineered pad. A common spec is roughly a 4 ft × 4 ft pad dug about 12 inches deep, filled with 3,000–4,000 PSI rebar-reinforced concrete, and cured 28 days before you anchor. SVI notes you can go smaller — around 2 ft × 2 ft holes, 10–12 inches deep at each column — but bigger pads are more forgiving. This is the most common route for a permanent two-post install on a thin slab.

2. Choose a lift that doesn't anchor into the slab

If cutting concrete isn't an option — a thin slab, radiant floor heating, epoxy you don't want to drill, or a rental — pick a lift that doesn't need deep anchoring. Four-post lifts such as this 4,000 kg four-post auto lift are freestanding and roll on caster kits, so they spread load without anchor bolts. Portable single-post lifts — like this 6,400 lb portable single-post lift — and mid-rise scissor lifts are other low-anchor options for tight or delicate floors. You give up some working height under the car, but you skip the slab surgery entirely.

3. Pour a whole new slab

For a new build or a full garage renovation, pour the floor right the first time: 12 inches thick at 4,000 PSI with proper rebar is BendPak's spec for a new slab, and it will carry any home two-post lift you'd want. It's the most expensive path, but it's also the only one where you never think about concrete again.

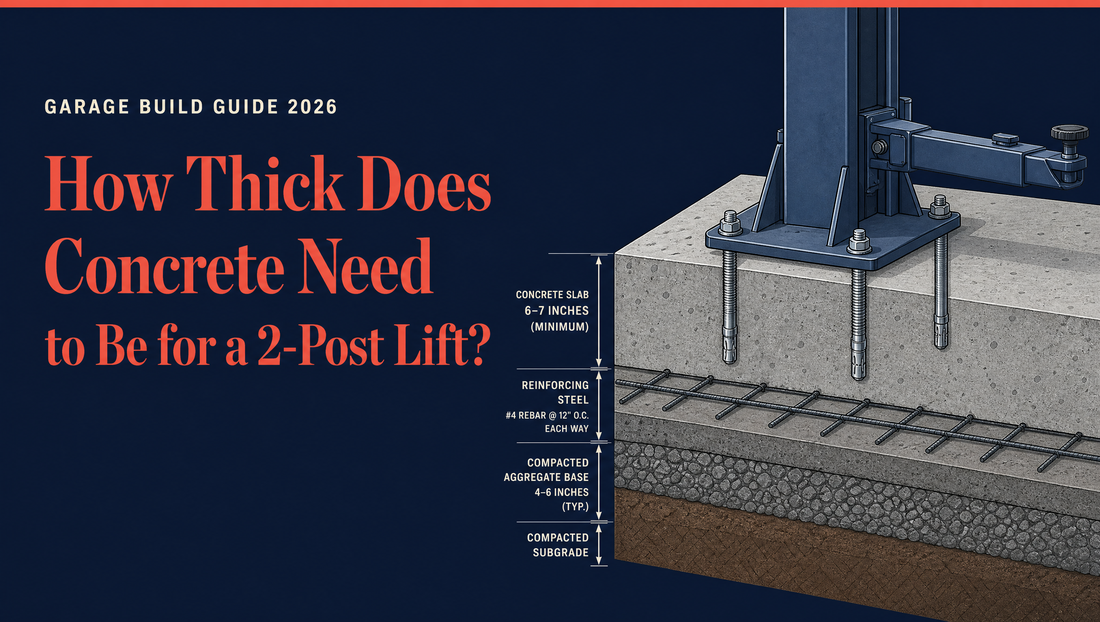

Where should the lift posts and anchors sit on the slab?

Even a perfect slab can fail if the anchors land in the wrong spot. Two placement rules come straight from the manufacturers. First, keep every anchor at least 6 inches from any expansion seam, control joint, crack, or slab edge — BendPak specifies that all 3/4-inch anchors must be a minimum of 6 inches away from expansion seams. Anchors set near an edge or joint have less concrete to grip and can blow out the side.

Second, remember why 4 inches is the true floor: most two-post lifts ship with 3/4-inch wedge anchors that need roughly 3 to 3¼ inches of embedment to develop full strength. On a nominal 4-inch slab, that anchor is nearly touching the bottom — there's no room for error, which is exactly why installers prefer 6 inches. Set both posts on the same continuous pour, never straddling a joint, and follow your manual's exact torque spec so you don't over-stress the anchor.

Do you need a permit or an engineer for a home 2-post lift?

Often, yes — at least for part of it. The 2024 International Residential Code (Section R317.7) says a residential automotive lift must be 'listed and labeled in accordance with ANSI/ALI ALCTV' — in plain terms, it must carry an ALI Gold Certification label — and must be installed to the listing and the manufacturer's instructions. The code also says a lift may not be installed in habitable space (living, sleeping, cooking, or eating areas). The 220V circuit most lifts need typically requires an electrical permit on its own.

Bring in a structural engineer when the answer isn't obvious: a post-tension slab, a garage over a basement or crawlspace, an upper-floor install, or a slab whose thickness and reinforcement you simply can't confirm. An engineer's letter costs far less than a failed anchor. When in doubt, a quick call to your local building department settles what your jurisdiction actually requires.

Frequently asked questions

Primary sources: BendPak — Concrete Floor Requirements · Redline Stands — Concrete Requirements for Car Lifts · SVI International — 2-Post Lift Concrete Requirements · CarLiftLab — The 4-Inch Rule · Automotive Lift Institute — 2024 IRC Chapter 3.
